Industrial Anisoprinting
Easier, faster and cheaper manufacturing process with high-strength parts from continuous fiber reinforced composites

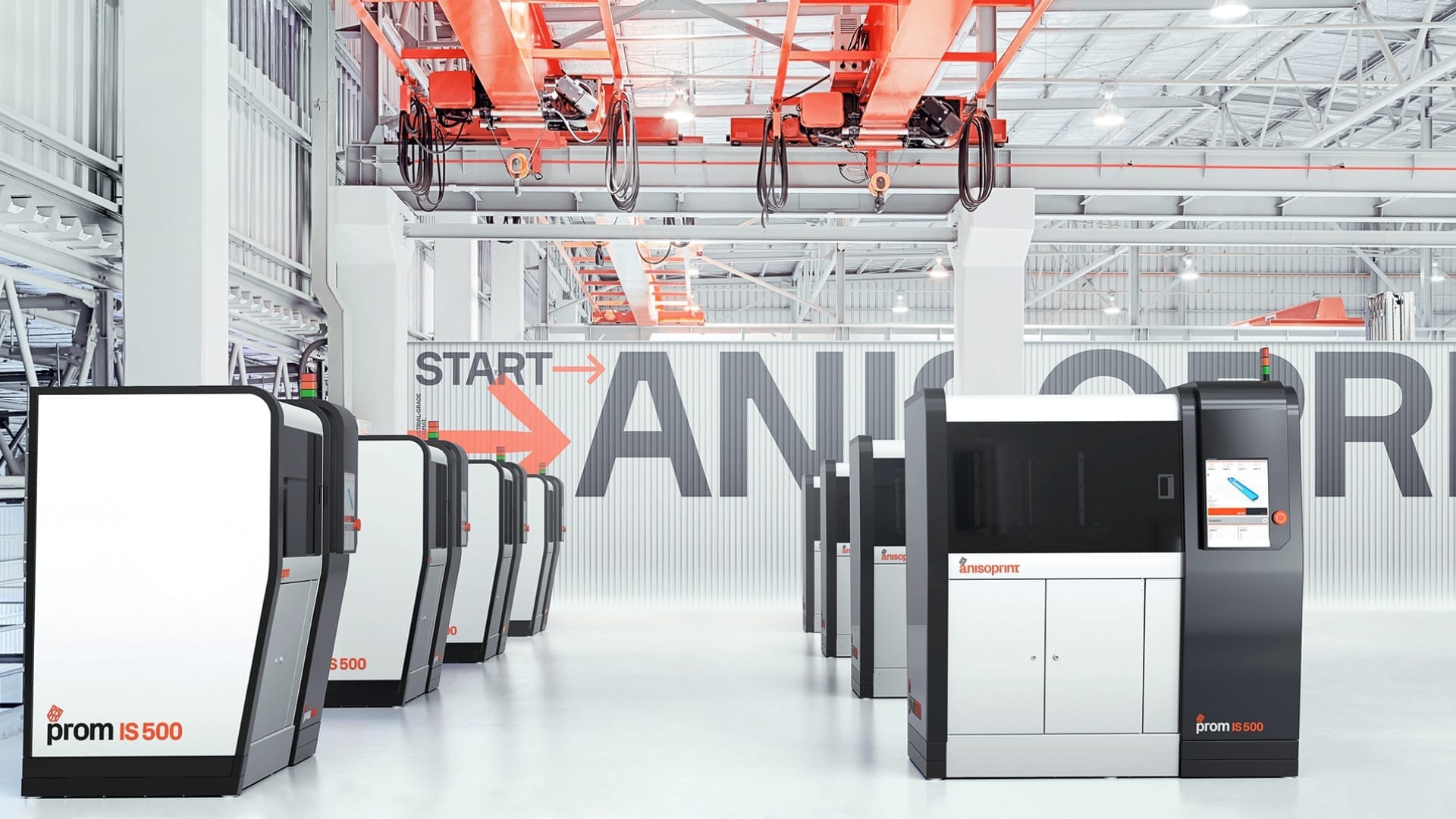

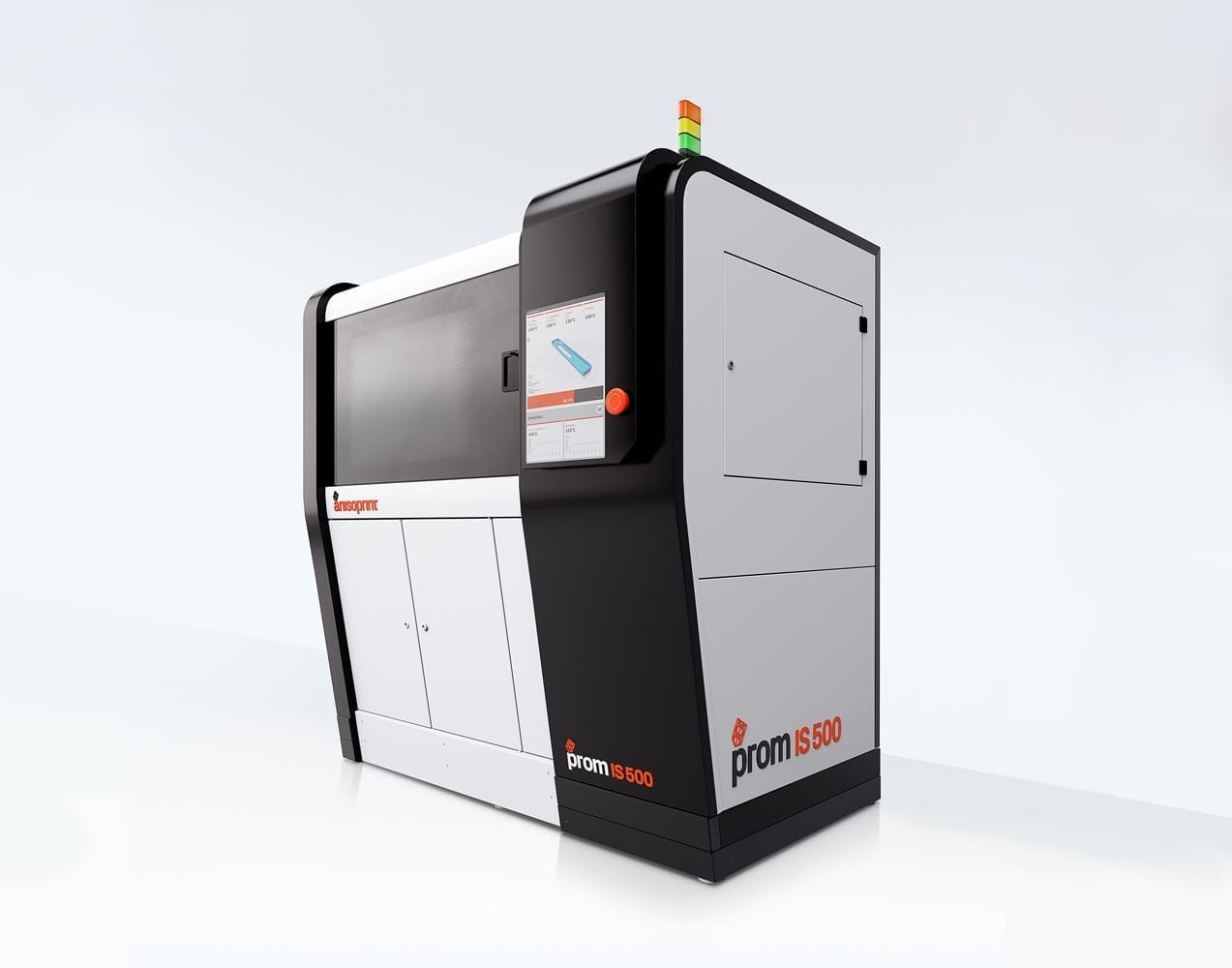

ProM IS 500
Industrial CNC, industrial standards: reliabiliry, repeatability, precision and safety
High temperature plastics (up to 410°C) as a matrix:
- PEEK
- PEI
large build volume:
600 x 420 x 300 mm
heated chamber temperature:
Up to 160°C
open system
Made for 24/7 run in a factory environment
Basic Specifications
CNC system
- PLC based BOSCH Rexroth XM42 controller
- CNC Technology Additive technology with CFC module
- Mechanics Ballscrews based
- X axis servo motor 200 Watt motor
- Y axis servo motor 400 Watt motor
- Z axis servo motor with brakes 200 Watt motor
- Extruders axis servo motor (E0-E5) 100 Watt motor
- Max travel speed 20 000 mm / min
Printing
- Tool changer Up to 4 print heads
- Layer thickness, min. 60μm
- FFF Filament diam. 1.75 mm / 2.85 mm
- Compatible plastics PEI, PEEK, PEKK, PAEK, PPSU, PSU, PA, PC
- FFF printhead nozzle, diam. 0.4 mm ÷ 1.2 mm
- Reinforcing fiber, thickness 1k – 0.25 mm / 3k – 0.5 mm
- Productivity (in CFC mode) 60 cc/h
- X travel 600 mm
- Y travel 420 mm
- Z travel 300 mm
Temperature
- Maximum extruder temperature FFF: 410°C (liquid cooling) /
CFC: 410°C (liquid cooling) - Maximum chamber temperature 160°C
- Material storage temperature 90°C
Interface
- Touchscreen Multi-touch gesture control, touchscreen
- Network communication Ethernet, WiFi, USB
- Operating environment Room temperature – max 30°C
Humidity – max 70% - Power requirements 380 VAC (3 phase+neutral+earth)
50/60Hz
Current 40A
Software
- Anisoprint Aura Slicer for CFC + FFF technology
- Aura.Connect Client-server system for print management
- OS support Windows 7, 8, 10
Physical characteristics
- Printer size (LxWxH) 2.6 х 1.8 х 2.35 m
- With LED Tower light 2.8 х 1.8 х 2.7 m
